Mapping-Komplett-V01.scr: what's in it, and what to check

A NovaLCT screen file with two screens. Screen 1 is a clean 6 × 9 cabinet layout. Screen 2 is a band of 27 thin strips, 1886 × 15 px, with two pairs of receiving cards on the same pixels, a right end beyond the file's screen area, and a sending-card number to confirm. Below: the findings, cabinet maps for both screens, and every file.

Checked 12 Oct 2026 · file 1,970 bytes, SHA-256 b327012fd9d1…fc05, checksums valid · decoded with Grid_System make_grid.py · IDs as in NovaLCT: sending card-port-receiving card

In short

Screen 1 is fine as mapped, with one question about how its four ports are split.

Screen 2 needs four checks before it goes on site: two pairs of receiving cards that share pixels (most likely a typing error), cards that reach past the 1680 px screen area, the sending-card number (3, with nothing on 2), and whether its 2–4 px tall "cabinets" really are LED strips.

	Screen 1	Screen 2
Screen type in NovaLCT	standard (regular grid)	complex (each card placed by hand)
Sending card	1	3
Ports	4	1
Receiving cards	54 (6 columns × 9 rows)	27
Card size	72 × 32 px, all the same	128–366 × 2–4 px, all different
Position · size	0,0 · 432 × 288 px	0,280 · 1886 × 15 px
Status	OK1 question	1 likely error2 checks1 to confirm

What to check

Screen 2: two pairs of receiving cards cover the same pixels

likely error

3-1-16 (x 1236–1488) and 3-1-17 (x 1404–1734) share x 1404–1488; 3-1-17 and 3-1-18 (x 1650–1886) share x 1650–1734, on the row y 286–289. Each overlap is exactly 84 px. Everywhere else on this screen a card starts exactly where its left neighbour ends.

Effect: NovaLCT accepts it, but the same 84 px of picture goes to two strips at each of those joins, so the image doesn't line up there.

Likely fix: widths 168 for 3-1-16 and 246 for 3-1-17 (instead of 252 and 330) close both overlaps and leave every position as it is. Moving 3-1-17 to x 1488 and 3-1-18 to x 1818 would also close them, but the row would then end at x 2054. Measuring the real strips tells which one is right. See the zoom below.

Screen 2 reaches past the screen area in the file

check

The file's screen area is 1680 × 1050. 3-1-17 ends at x 1734 and 3-1-18 at x 1886, 54 and 206 px past 1680. If sending card 3's input is 1680 px wide, those pixels get no picture, so most of 3-1-18 stays black. With a 1920 × 1080 input they are fine.

Check: the input resolution of sending card 3. Fixing item 1 by moving cards rather than shortening them would push the end further right.

Screen 2 is on sending card 3; nothing uses sending card 2

check

Screen 1 is on sending card 1. If the system has only two sending cards (or one controller with two outputs), screen 2 belongs on sending card 2; on card 3 it gets no data.

Check: the hardware chain against NovaLCT's list of sending cards.

Screen 2's "cabinets" are 2–4 px tall

confirm

All 27 receiving cards are 128–366 px wide and only 2, 3 or 4 px tall, stacked into seven rows between y 280 and 295. That fits LED strips or pixel lines, one receiving card per strip group. If they are meant to be ordinary cabinets, the heights and Y positions are wrong.

Confirm which product screen 2 is.

Screen 1: ports 2 and 3 carry one column each

question

Port 1 serves columns 1–2 and port 4 columns 5–6 (18 cards each, up one column and down the next); ports 2 and 3 serve only column 3 and column 4 (9 cards each, bottom to top). That is fine electrically: the busiest port carries 41,472 px.

Check that the cables run this way. If the site is wired as three ports of two columns each, ports 2–4 are mapped wrong.

Minor: two gaps, and two small differences from NovaLCT's own files

minor

On screen 2's bottom row (y 292–295), x 128–256 and x 824–952 have no card: fine if the strips really have gaps there. The file stores corner-point data for screen 1 only, and its screen 1 block lacks 15 bytes that NovaLCT's own files carry. Both point to another NovaLCT version or an edited file; worth knowing if NovaLCT complains when loading it.

Screen 2 in detail

Screen 2 is only 15 px tall, so the pictures below are drawn 16 times taller than real to make room for labels. Each card is labelled with its ID, then StartX,StartY and Width × Height from the file. The red hatching marks pixels that two cards share; the thin line is the data order, starting at S.

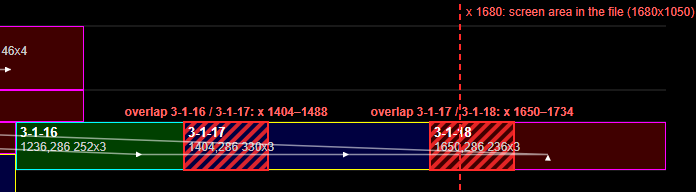

Zoom on the right end of screen 2: the overlaps of 3-1-16/3-1-17 and 3-1-17/3-1-18, and the x 1680 edge of the screen area — **Items 1 and 2.** The two 84 px overlaps, and the dashed x 1680 line: everything to its right is outside the file's screen area.

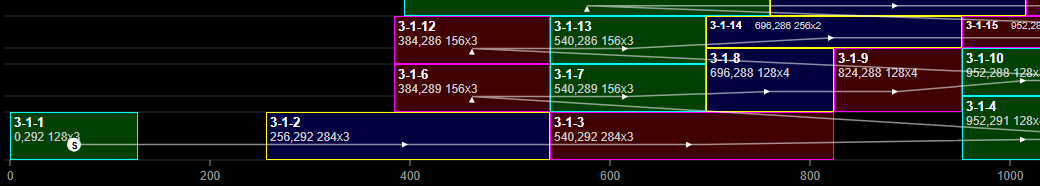

Zoom on the left part of screen 2: the bottom row with gaps at x 128–256 and x 824–952, and the data path starting at 3-1-1 — **Item 6.** The bottom row with its gaps (x 128–256 and x 824–952), and the start of the data path at 3-1-1.

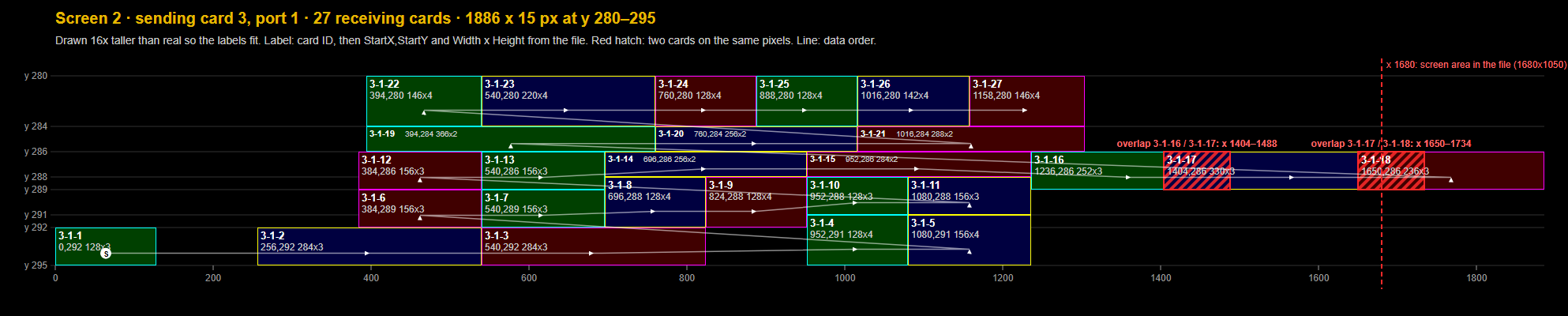

The whole of screen 2, drawn 16 times taller than real, with every receiving card labelled — The whole screen (scroll sideways). Open full size. The data runs row by row, each row left to right, from the bottom row (y 292) up to the top row (y 280).

Screen 2 cabinet map: coloured bars, one per receiving card — The cabinet map to play on screen 2, stretched here to 60 px tall. Real size is 1886 × 15: each receiving card lights as one solid bar, and neighbours in the chain get different colours (magenta, cyan, yellow).

Card	StartX	StartY	Width	Height	Ends at x	Note
3-1-1	0	292	128	3	128
3-1-2	256	292	284	3	540
3-1-3	540	292	284	3	824
3-1-4	952	291	128	4	1080
3-1-5	1080	291	156	4	1236
3-1-6	384	289	156	3	540
3-1-7	540	289	156	3	696
3-1-8	696	288	128	4	824
3-1-9	824	288	128	4	952
3-1-10	952	288	128	3	1080
3-1-11	1080	288	156	3	1236
3-1-12	384	286	156	3	540
3-1-13	540	286	156	3	696
3-1-14	696	286	256	2	952
3-1-15	952	286	284	2	1236
3-1-16	1236	286	252	3	1488	overlaps 3-1-17 by 84 px
3-1-17	1404	286	330	3	1734	overlaps 3-1-16 by 84 px overlaps 3-1-18 by 84 px 54 px past x 1680
3-1-18	1650	286	236	3	1886	overlaps 3-1-17 by 84 px 206 px past x 1680
3-1-19	394	284	366	2	760
3-1-20	760	284	256	2	1016
3-1-21	1016	284	288	2	1304
3-1-22	394	280	146	4	540
3-1-23	540	280	220	4	760
3-1-24	760	280	128	4	888
3-1-25	888	280	128	4	1016
3-1-26	1016	280	142	4	1158
3-1-27	1158	280	146	4	1304

Screen 1 in detail

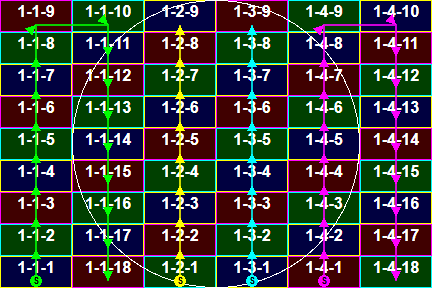

Screen 1 cabinet map: 6 columns by 9 rows, each cabinet labelled with its ID, data paths per port — The cabinet map to play on screen 1, shown here at twice its real size (432 × 288). Each cabinet shows its ID; each port's data path is drawn in its own colour, starting at S where the cable enters.

Sending card-port	Cards	Columns	Data path	First card	Pixels
1-1	18	1–2	up column 1, then down column 2	1-1-1 at 0,256 (bottom)	41,472
1-2	9	3	up column 3	1-2-1 at 144,256 (bottom)	20,736
1-3	9	4	up column 4	1-3-1 at 216,256 (bottom)	20,736
1-4	18	5–6	up column 5, then down column 6	1-4-1 at 288,256 (bottom)	41,472

Numbering is continuous on every port (1 to n, no gaps or duplicates), every step goes to a neighbouring cabinet, and no cabinets overlap.

Files

File	What it is	Size	Download
Mapping-Komplett-V01.scr	The NovaLCT file as received	1,970 bytes	.scr
Screen 1 cabinet map	Exact size, to play on screen 1: every cabinet shows its ID, data paths per port	432 × 288	PNG · SVG
Screen 2 cabinet map	Exact size, to play on screen 2: one solid bar per receiving card (no room for text)	1886 × 15	PNG · SVG
Screen 2 diagram	For reading, not for the LEDs: drawn 16× taller with IDs, positions, overlaps and data order	1986 × 400	PNG · SVG

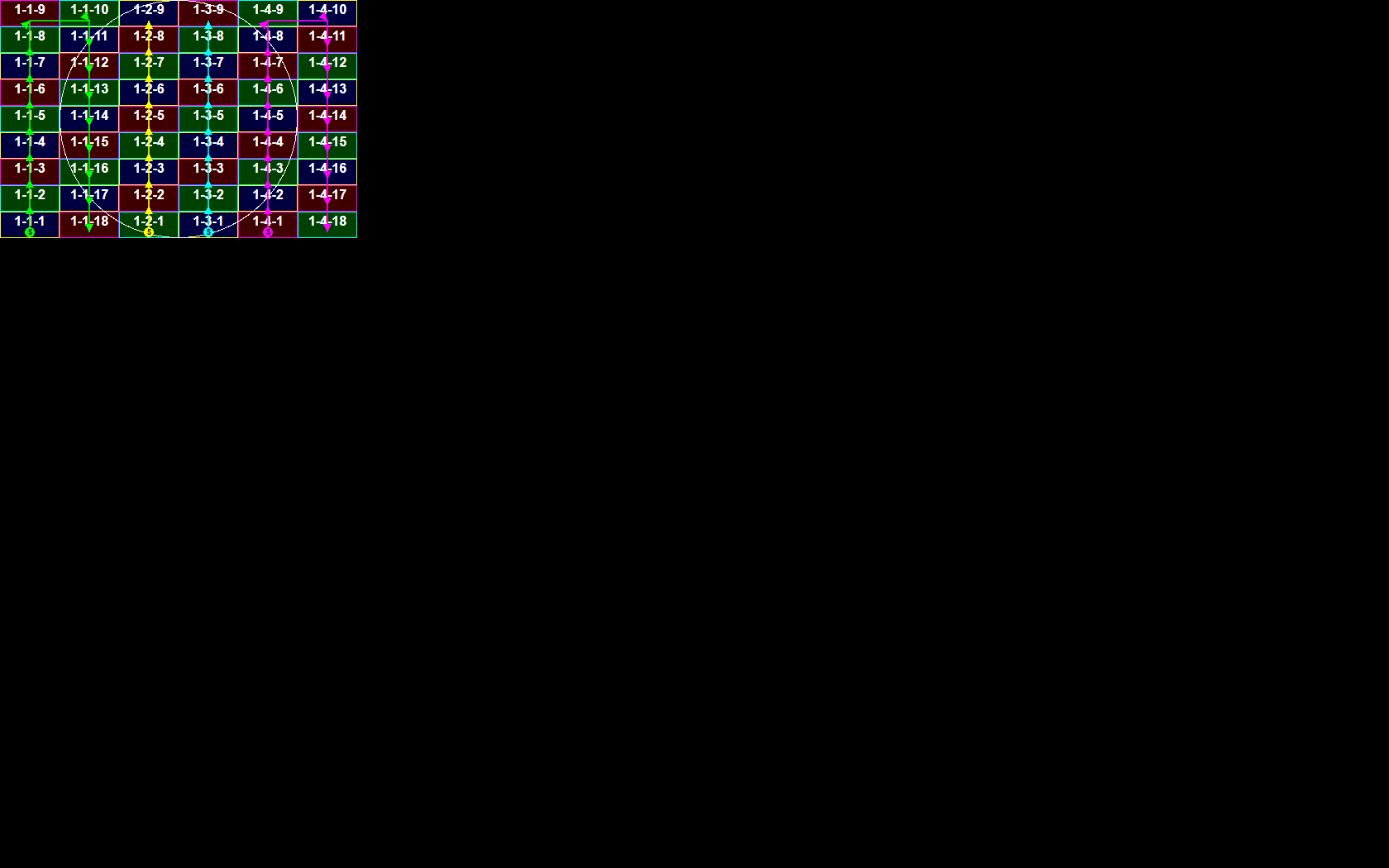

Sending card 1 overview	Screen 1 at its position on sending card 1's input, padded to the file's screen area	1680 × 1050	PNG · SVG

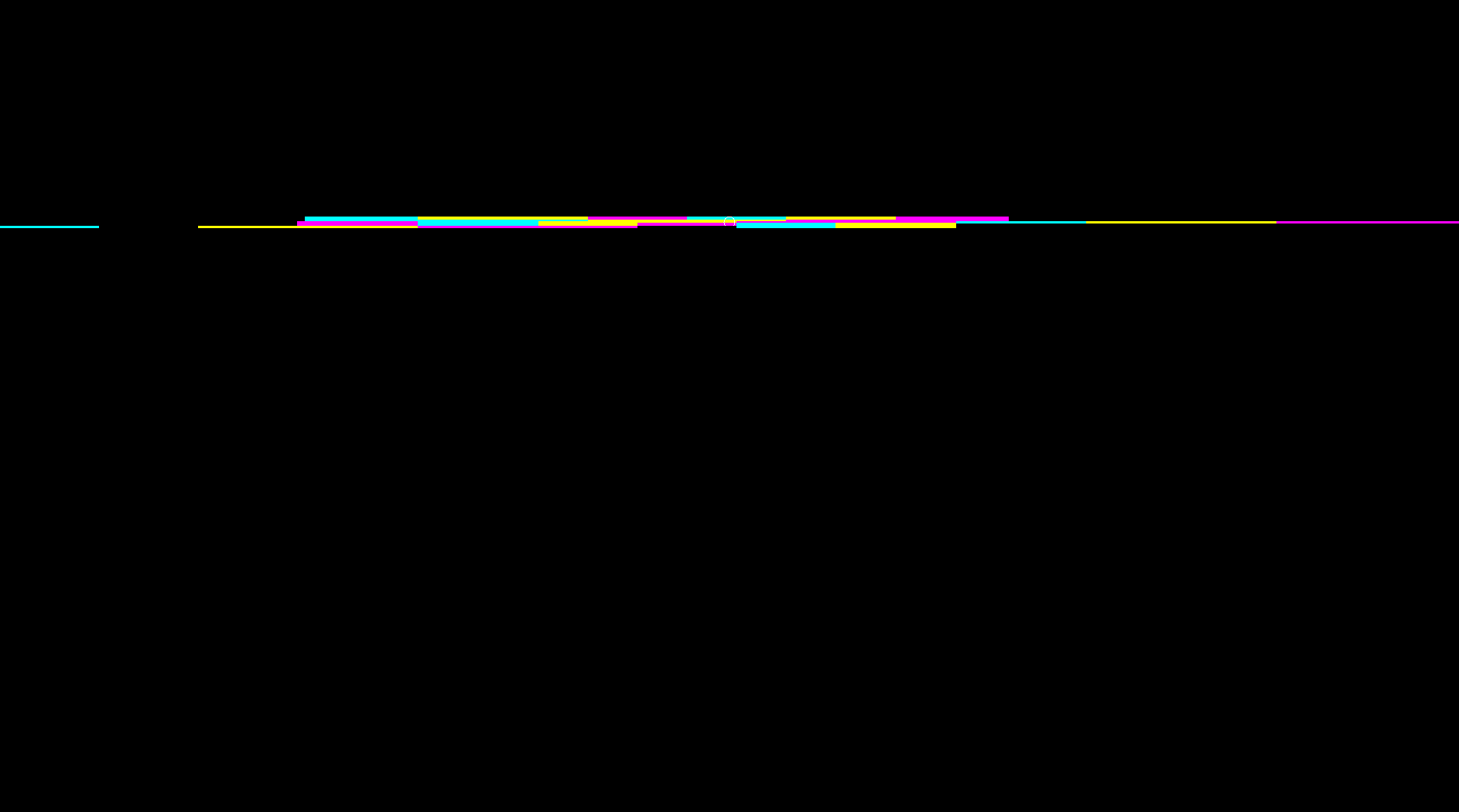

Sending card 3 overview	Screen 2 at its position on sending card 3's input; 1886 wide because it reaches past the screen area	1886 × 1050	PNG · SVG

How this was checked

Checked

Decoded with Grid_System's make_grid.py. Its reading of standard screens was corrected for this file (it gave the same cabinets as before on every earlier sample).
Per port: receiving-card numbers run 1 to n with no gaps or duplicates, and each step goes to a neighbouring card.
Overlaps and gaps pixel by pixel; each screen's extent against the file's screen area; which sending cards are used.
The file's own checksums and length fields: all valid.

Not checked

The physical installation and how the cables really run.
Sending card 3's real input resolution, and how many sending cards the system has.
Which LED product screen 2 is, and the real lengths of its strips.
Loading the file in NovaLCT.
